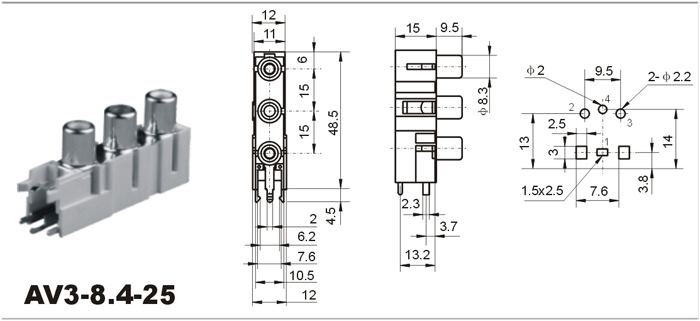

AV同芯插座系列主要技术指针Specifications of AV pin jack board series

使用温度范围Temperature

-40-70 ^oC

耐压Withstand Voltage

AC500V(50Hz)/min

额定负荷Rated load

DC50V0.2A

插拨力Insertion and Extraction Force

3-25N

接触电阻Contact Resistance

≤0.02Ω

寿命Life

5000次

绝缘电阻Insulation Resistance

≥100MΩ
